Introduce:

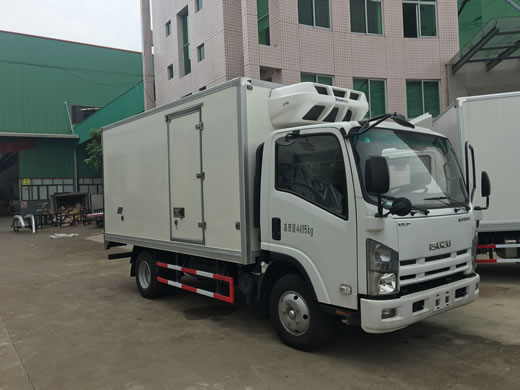

Suitable for light and medium truck trucks, driven by engine or driven by standby electric refrigeration system, and optional installation of standby electric refrigeration system DC220V/DC380V.

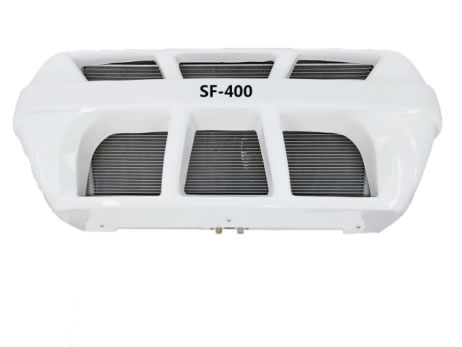

It is the first choice for transporting refrigerated frozen food, dairy products, vegetables, fruits, ice cream and fresh industrial electronic products. Its refrigeration performance is very stable and reliable. SNOWFALL recommends you choose between a classic engine drive unit and a brand new backup built-in unit. Covering all container volumes, one or more of this series will meet your needs.The SF-400, a transport refrigerating unit driven by the engine, is a reliable refrigerating unit for the refrigerating keeping fresh car with the size of 14~-18m of the heat preservation compartment, and also has the selection of bottom hanging condenser inside.
Features:
Each SNOWFALL will be featured with low cost, low maintenance, low noise, energy saving and environmental protection.
Model | SF - 400 | |||
Applicable Temperature (℃) | 15 ~ -25 | |||
Cooling Capacity | Environmental Temperature | 35°C | ||
0°C | 3900Kcal | |||
-18°C | 2300Kcal | |||
Compressor | Model | QP16 | ||
Displacement(cc/r) | 138cc/163cc | |||
Condenser | Type | P.F. | ||
Fan Type | Axial fan | |||
Number of Fan | 3Fans x 1000m3/h | |||
Voltage | DC 12V/DC24V | |||
Evaporator | Type | Inner screw tube and aluminium fin | ||
Fan Type | Axial fan | |||
Number of Fan | 2 Fans x1000m3/h | |||
Voltage | DC 12V/DC24V | |||
Power Consumption | ≤ 30A (DC12V) | |||
Refrigerant | R-134a/R-404a | |||
Defrost Type | Automatically hot air defrost | |||
Structure | Split direct drive unit | |||
Dimensions (mm) /Net weight(kg) | SF-400 Evaporator | L640x W1290x H180 | 18.5 kg | |
SF-400 Condenser | L570 x W1260 x H435 | 27.1kg | ||
SF-U400 Condenser | L640x W1290x H180 | 30.2kg | ||
SF-U400 Condenser | L310 x W1020 x H460 | 15.8kg | ||
SF-T400 Condenser | L640x W1290x H180 | 18.5 kg | ||
SF-T400 Condenser | L1290x W660x H200 | 30.2kg | ||
Electric Standby system（optional part） | AC 220V /AC 380V | |||
