SF-700

contact number:+86 20-34554789

product details

Introduce:

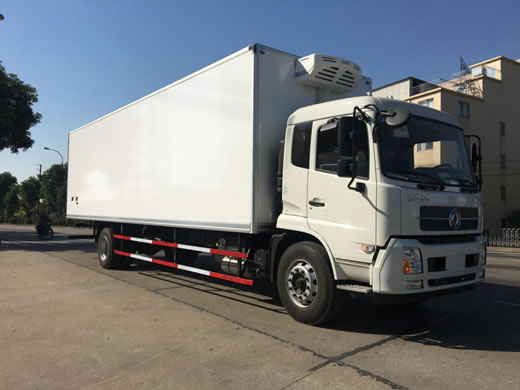

It is suitable for refrigerating vehicles of light trucks and above, with remarkable refrigeration effect under the volume of 14-23m.



It is the first choice for transporting refrigerated frozen food, dairy products, fruits, ice cream, fresh agricultural products and industrial electronic products, with very stable and reliable refrigeration performance.

The engine-driven transport refrigerating unit SF-700 sub-unit is a reliable refrigerating unit for light truck thermal insulation vehicles with a size of 14~ 23m.



Feature:

The whole transport refrigerating unit is light and compact, the condenser is in front, the 12-inch large aluminum alloy vane motor imported from Taiwan, the evaporator can be installed as required.

3. This series of models fully covers the freezing capacity ranging from 14 m to 56m and accurately matches its freezing volume from per square meter.

4. Each SNOWFALL will be featured with low cost, low maintenance, low noise, energy saving and environmental protection.



Model

SF - 700

Applicable Temperature ()

15 ~ -20

Cooling Capacity

Environmental Temperature

35°C

0°C

5800Kcal

-18°C

3250Kcal

Compressor

Model

QP16/QP21

Displacement(cc/r)

215cc

Condenser

Type

P.F.

Fan Type

Axial fan

Number of Fan

3Fans x 1000m3/h

Voltage

DC 12V/DC24V

Evaporator

Type

Inner screw tube and aluminium fin

Fan Type

Axial fan

Number of Fan

3Fans x1000m3/h

Voltage

DC 12V/DC24V

Power Consumption

37.5A (DC12V)
22.5A (DC24V)

Refrigerant

R-134a/R-404a

Defrost Type

Automatically hot air defrost

Structure

Split direct drive unit

Dimensions (mm) /Net weight(kg)

SF-700 Evaporator

L570x W1240x H240

31.4 kg

SF-700 Condenser

L570 x W1260 x H435

54.3kg

Electric Standby systemoptional part

AC 220V /AC 380V
