Introduce:

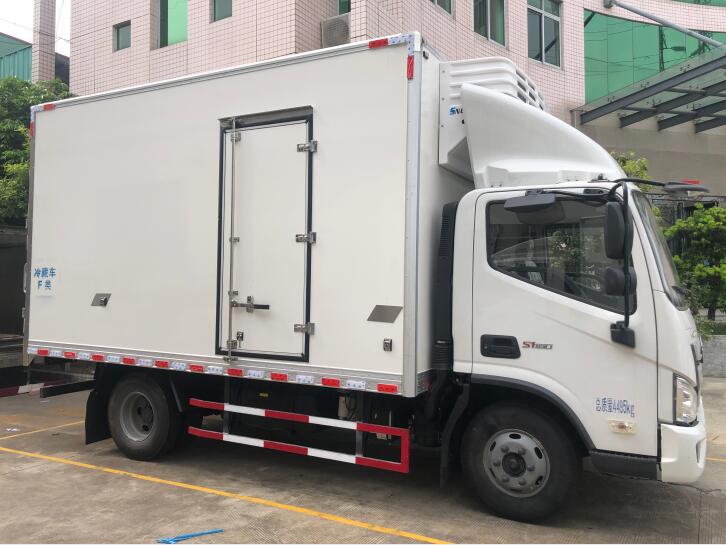

It is suitable for refrigerating vehicles of light trucks and above, with remarkable refrigeration effect under the volume of 14-23m
It is the first choice for supermarket, food and beverage distribution, and pork refrigerating truck. Its refrigeration performance is very stable and reliable.

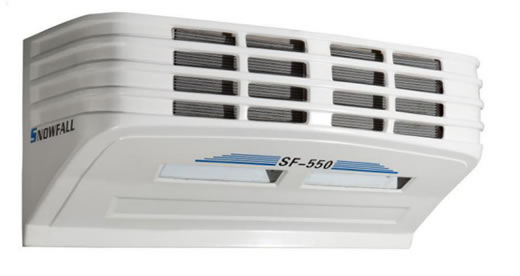

The SF-550 all-in-one engine driven transport refrigerating unit is a reliable refrigerating unit for light truck thermal insulation vehicles with a size of 14~ 23m.
Feature:
Optional DC 12V or 24V for you to choose, and backup electric refrigeration system DC220V/DC380V optional installation.
Each SNOWFALL will be featured with low cost, low maintenance, low noise, energy saving and environmental protection.
Model | SF - 550 | ||
Applicable Temperature (℃) | 15 ~ -25 | ||
Cooling Capacity | Environmental Temperature | 35°C | |
0°C | 4900Kcal | ||
-18°C | 2800Kcal | ||
Compressor | Model | QP16/QP21 | |
Displacement(cc/r) | 163cc/215cc | ||
Condenser | Type | P.F. | |
Fan Type | Axial fan | ||
Number of Fan | 3Fans x 1000m3/h | ||
Voltage | DC 12V/DC24V | ||
Evaporator | Type | Inner screw tube and aluminium fin | |
Fan Type | Axial fan | ||
Number of Fan | 3Fans x1000m3/h | ||
Voltage | DC 12V/DC24V | ||
Power Consumption | ≤ 48..5A (DC12V) | ||
Refrigerant | R-134a/R-404a | ||
Defrost Type | Automatically hot air defrost | ||
Structure | Split direct drive unit | ||
Dimensions (mm) /Net weight(kg) | L1665x W760x H480 | 106 kg | |
Electric Standby system（optional part） | AC 220V /AC 380V | ||
